Finned tube heat exchanger

Short Description:

Our product range covers most applications in the oil & gas, petrochemical and power industries. We supply both standardized and fully customized, engineered-to-order solutions. Thanks to their flexible designs, we can configure our heat exchangers to match your specific operating conditions, ensuring reliable operation, low operating costs and high performance.

Datang supplies a broad range of heating, cooling solutions for the metalworking industry.

FOB Price: US $0.5 - 9,99 / Piece

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 80000 Pieces per Month

Send email to us

Product Detail

Product Tags

Applications

Upstream - Field compression,SAGD/EOR,Upgraders

Midstream - Compressor stations,Gas processing,Gas fractionation,LNG

Downstream - Refineries,Petrochemical plants,Power plants,CNG

Features

Horizontal section(s) and fan(s) with vertical air ejection

Available in single fan to four fan configurations

Available with low-weight aluminum fan guard(s) for increased maintenance safety

VFD capable electrical drive for precise air control and power consumption

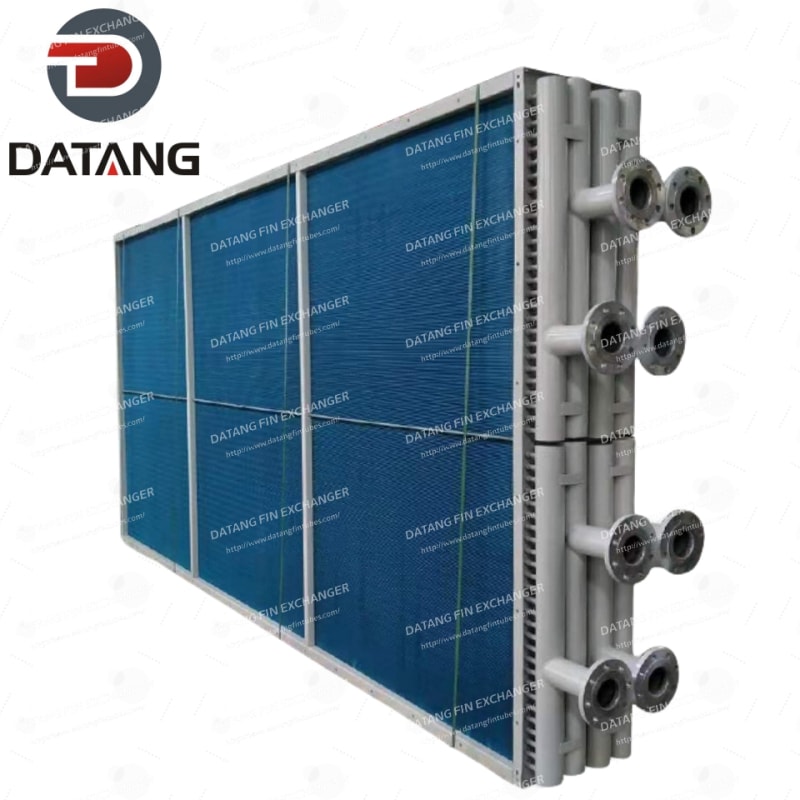

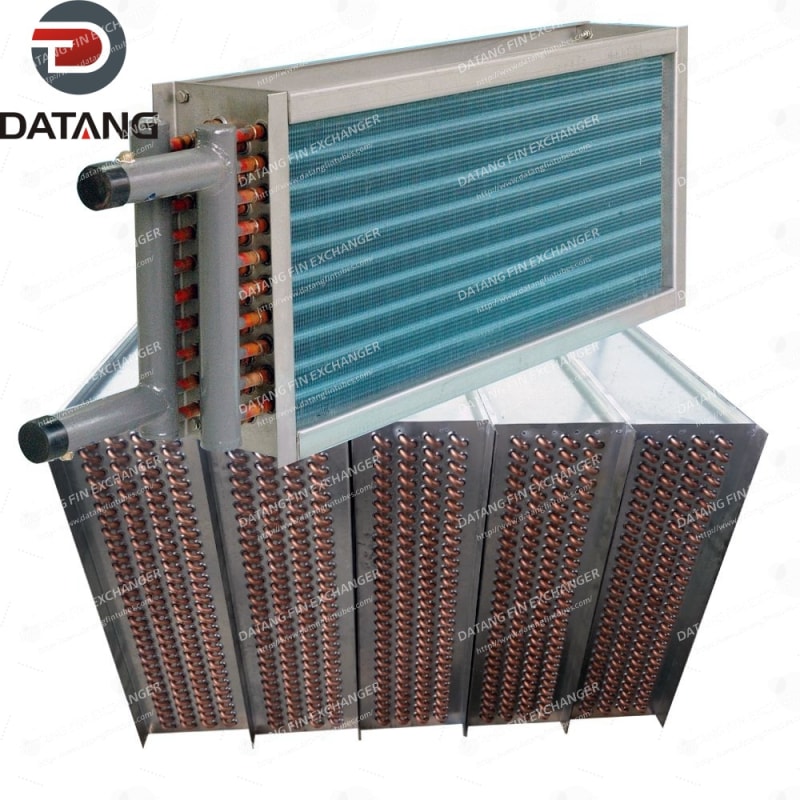

Air heat exchanger/Radiator

A kind of heat exchanger that is used to cool or heat forcibly flowing air with water, glycol solution, steam or heat conduction oil as the medium.Different models of heat exchanger should be selected according to the actual working conditions.

Air heat exchanger can be divided into air heater and air cooler.

Air heater has several forms including electric heating, steam heating, and oil heating etc.

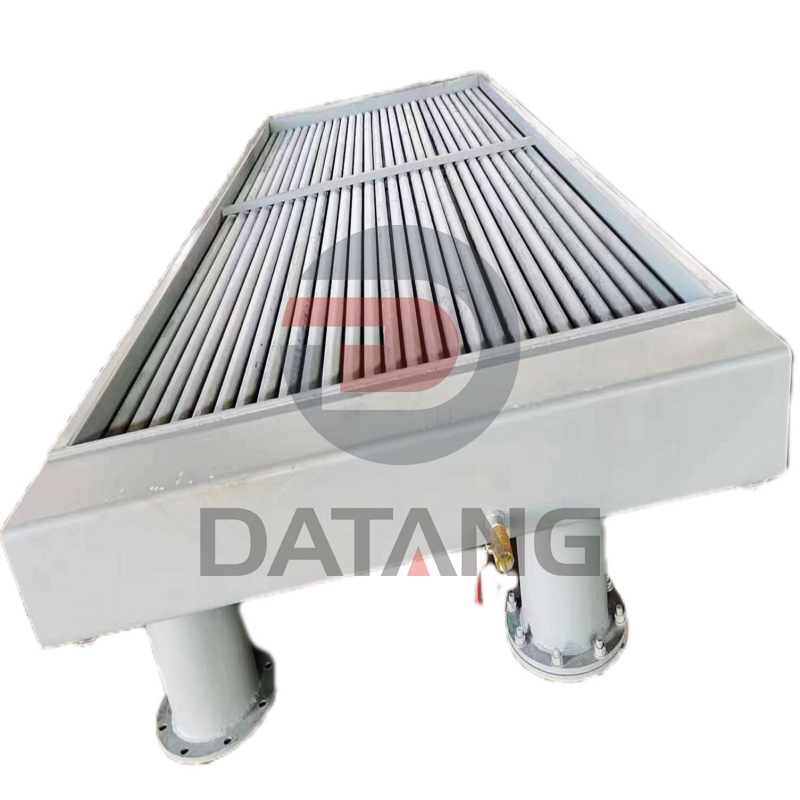

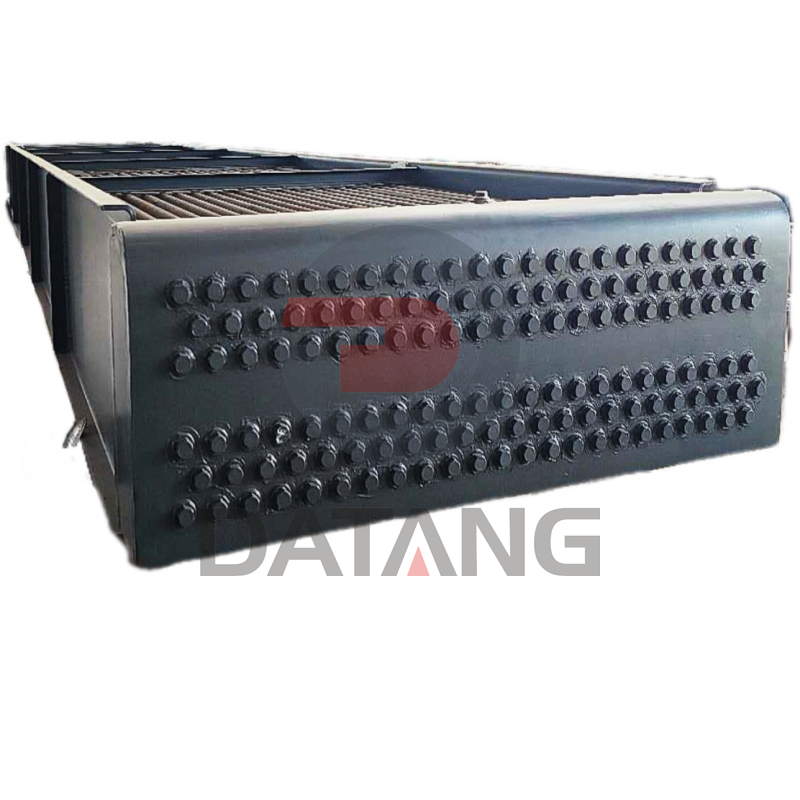

Air cooler

Product Description

An air cooler is an equipment that uses ambient air as the cooling medium, sweeping the outside of a finned tube to cool or condense the high-temperature process fluid inside the tube.

It is an independent set of equipment with a small footprint, which can be placed indoors or outdoors according to user requirements. It can be connected to the equipment using hoses or steel pipes. The water pressure can be adjusted by adjusting the valve, which is displayed on the pressure gauge on the water distribution package. Before use, all cut-off valves of the high-frequency equipment should be closed. After self circulation, the water should be drained by the drain valve under the water distribution package to ensure that there are no debris during equipment use, so as not to cause blockage.

Product advantages

1, Improving the service life of electronic tubes (high-frequency equipment): Ordinary water is prone to scaling and requires regular cleaning The daily scaling has already affected the emission power and lifespan of electronic tubes, and in severe cases, the anode of the electronic tube is easily burned through.

2, Save electricity. Taking the 100KW high-frequency electronic tube equipment as an example, the power consumption of the anode water circuit to the ground under the action of DC high voltage is about 8KW for ordinary water and about 70W for distilled water.

3, Reduce electrolytic corrosion. Anode high voltage forms a direct current to the ground through water resistance. Causing electrolytic corrosion at the inlet and outlet of the electronic tube water jacket, the electrolytic corrosion rate of ordinary water is more than 100 times that of distilled water.

Product specifications and models

Customized products

Product Usage

Mainly used for cooling, processing, and freezing storage of meat, poultry, aquatic products, fruits and vegetables, eggs and milk, and cold beverage products in the food industry, as well as cooling and refrigeration of various alcoholic beverages and beverages such as beer. In addition, it can also meet the cooling needs of industrial cooling processing raw materials and venues in industries such as chemical, pharmaceutical, mechanical, electronic, and hydroelectric industries

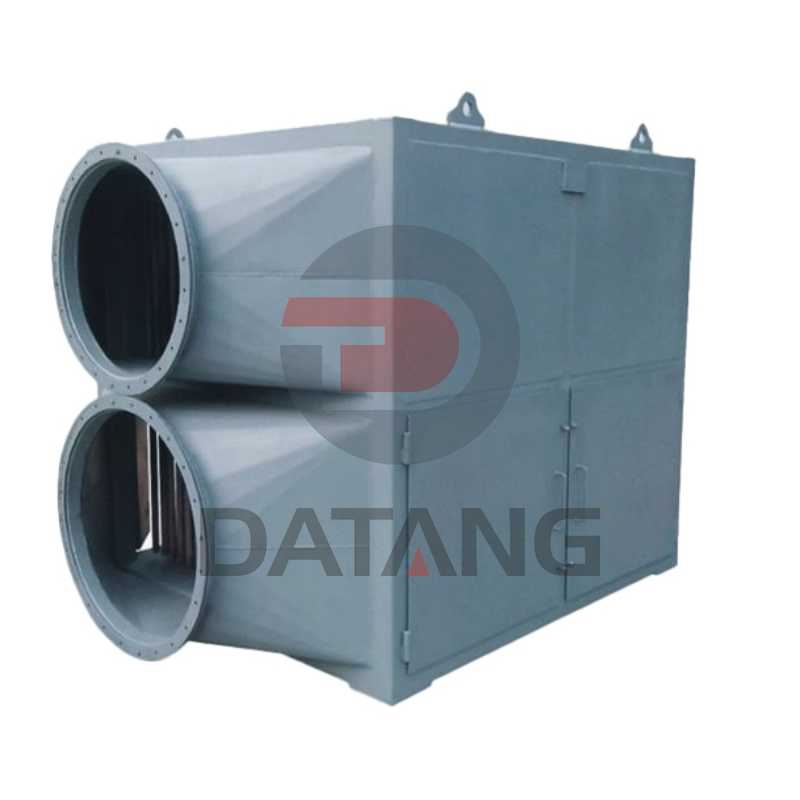

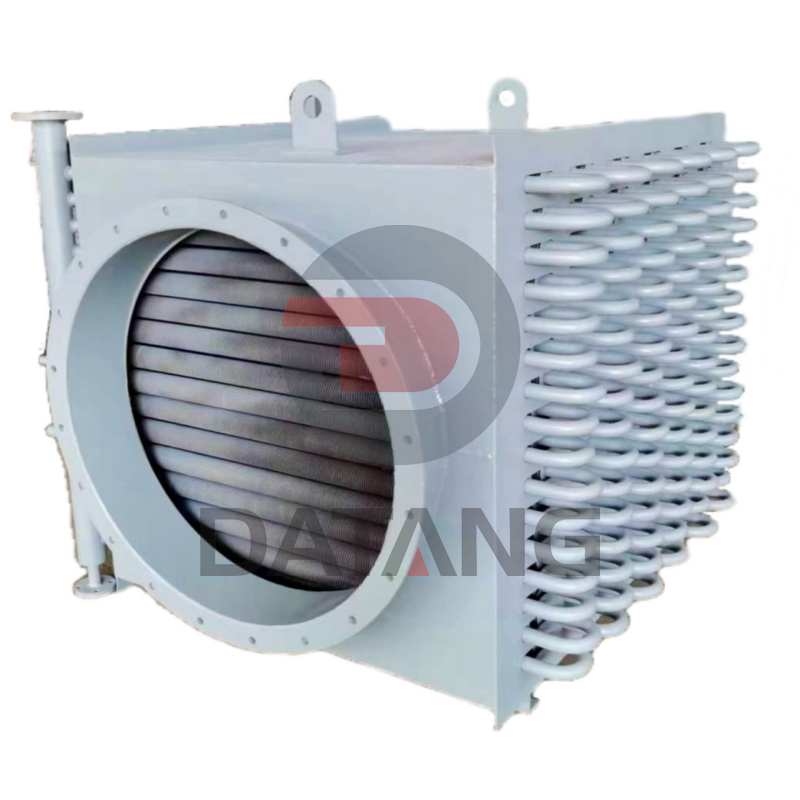

Economizer

Product Description:
A economizer is a device installed at the lower part of the tail flue of a boiler to recover the waste heat from the exhaust gas. It heats the boiler feedwater into a saturated water heating surface under the pressure of the steam drum. Due to its absorption of heat from high-temperature flue gas, it reduces the exhaust temperature of the flue gas, saves energy, and improves efficiency, so it is called an economizer.
The steel tube economizer is not limited by pressure and can be used as a boiling type. It is generally made of carbon steel pipes with an outer diameter of 32-51 millimeters. Sometimes fins and fins are added to the tube to improve heat transfer efficiency. The steel tube economizer consists of horizontally arranged parallel elbow pipes (commonly known as serpentine pipes).

Product advantages:
1. Absorb the heat of low-temperature flue gas, lower the exhaust temperature, reduce exhaust losses, and save fuel.
2. Due to the fact that the feedwater is heated in the economizer before entering the steam drum, the heat absorption of the feedwater on the heating surface is reduced, and an economizer can be used to replace some of the more expensive evaporative heating surfaces.
3. As the feed water temperature increases, entering the steam drum will reduce the wall temperature difference, correspondingly reduce thermal stress, and prolong the service life of the steam drum.

Product Usage:
During the start-up process of the boiler (drum boiler), due to the lack of circulation in its steam water pipeline, i.e. the boiler feedwater is in a stagnant state, the water in the economizer is in a non flowing state. With the strengthening of boiler combustion and the increase of flue gas temperature, the water in the economizer is prone to vaporization, causing the local part of the economizer to be in an over temperature state. To avoid this situation, connect another pipeline from the centralized drainage pipe of the steam drum to the inlet of the economizer as a recirculation pipeline, so that the water inside the economizer is in a flowing state and avoids vaporization

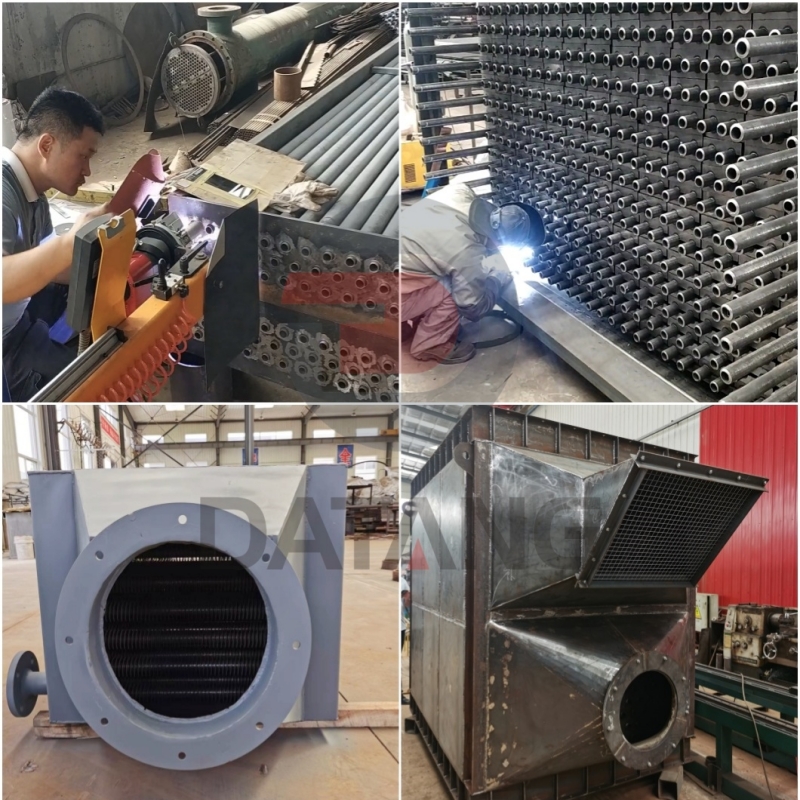

Production process: finned tube type
The economizer is arranged at the tail of the boiler with lower flue gas temperature, and its main function is to:
(1) The economizer absorbs the heat from the low-temperature flue gas in the tail flue, which can reduce the exhaust temperature of low parameter boilers, improve boiler thermal efficiency, and save fuel.
(2) The adoption of economizers increases the water temperature entering the drum, reduces the temperature difference between the drum wall and the feed water, thereby reducing the thermal stress of the drum and improving its lifespan.
